Assembly tool front sprocket, adjustable
Assembly tool front sprocket, BMW S 1000 RR 2019- (K67) and M 1000 RR 2021- (K66), adjustable, aluminium
€79.00
Product number:
8330B061A00
The alpha Racing assembly tool locks the front sprocket in place during installation and removal. Acting as a sprocket holder, it clamps between sprocket and swingarm and prevents the sprocket from turning while the sprocket nut is loosened or tightened. Sprocket changes can be carried out safely and without a second person, in the workshop as well as in the pit box.
Application
The fitting direction determines the function: inserted from above, the sprocket nut can be tightened. Inserted from below, it can be loosened. The tool rests against the swingarm and holds the sprocket by its teeth.
Adjustable for different distances
The distance between sprocket and swingarm depends on sprocket size and the position of the swingarm pivot, e.g. with an adjustable swingarm pivot. If the distance is too large, the tool can be extended: after loosening a hex socket screw, the side part is rotated and then fixed again. This ensures secure clamping even with a larger gap.
Suitable for all sprocket variants
The tool works with 520 and 525 sprockets in all tooth counts available for the S 1000 RR (K67) and M 1000 RR (K66). Different distances resulting from sprocket size are compensated by the adjustable length.
Material and weight
The tool is made of aluminium and weighs 100 g. It replaces the previous, non-adjustable assembly tool.
Frequently asked questions
Which motorcycles does the tool fit?
BMW S 1000 RR from model year 2019 (K67) and BMW M 1000 RR from model year 2021 (K66), including current models.
Which sprockets is the tool suitable for?
For 520 and 525 sprockets in all tooth counts available for the S 1000 RR (K67) and M 1000 RR (K66).
How is the tool inserted for loosening or tightening?
From above to tighten the sprocket nut, from below to loosen it.
What if the tool does not clamp?
Loosen the hex socket screw, rotate the side part to extend the tool and retighten the screw.
Does the tool replace its predecessor?
Yes. Unlike the predecessor, the new tool is adjustable in length.
Application
The fitting direction determines the function: inserted from above, the sprocket nut can be tightened. Inserted from below, it can be loosened. The tool rests against the swingarm and holds the sprocket by its teeth.
Adjustable for different distances
The distance between sprocket and swingarm depends on sprocket size and the position of the swingarm pivot, e.g. with an adjustable swingarm pivot. If the distance is too large, the tool can be extended: after loosening a hex socket screw, the side part is rotated and then fixed again. This ensures secure clamping even with a larger gap.
Suitable for all sprocket variants
The tool works with 520 and 525 sprockets in all tooth counts available for the S 1000 RR (K67) and M 1000 RR (K66). Different distances resulting from sprocket size are compensated by the adjustable length.
Material and weight
The tool is made of aluminium and weighs 100 g. It replaces the previous, non-adjustable assembly tool.
Frequently asked questions
Which motorcycles does the tool fit?
BMW S 1000 RR from model year 2019 (K67) and BMW M 1000 RR from model year 2021 (K66), including current models.
Which sprockets is the tool suitable for?
For 520 and 525 sprockets in all tooth counts available for the S 1000 RR (K67) and M 1000 RR (K66).
How is the tool inserted for loosening or tightening?
From above to tighten the sprocket nut, from below to loosen it.
What if the tool does not clamp?
Loosen the hex socket screw, rotate the side part to extend the tool and retighten the screw.
Does the tool replace its predecessor?
Yes. Unlike the predecessor, the new tool is adjustable in length.
Delivery Scope
Assembly tool
Note
Observe the fitting direction: insert from above to tighten, from below to loosen the sprocket nut.
Remove the tool before moving the rear wheel or starting the engine.
| Manufacturer | Model | Type | Model Year | Variant | Capacity |
|---|---|---|---|---|---|
| BMW | M 1000 RR | K66 | 2021 - 2022 | 0E71 | 999 |
| BMW | M 1000 RR | K66 | 2023 - 2024 | 0P01 | 999 |
| BMW | M 1000 RR | K66 | 2025 - | 0P41 | 999 |
| BMW | S 1000 RR | K67 | 2019 - 2022 | 0E21 | 999 |
| BMW | S 1000 RR | K67 | 2023 - 2024 | 0E61 | 999 |
| BMW | S 1000 RR | K67 | 2025 - | 0P21 | 999 |

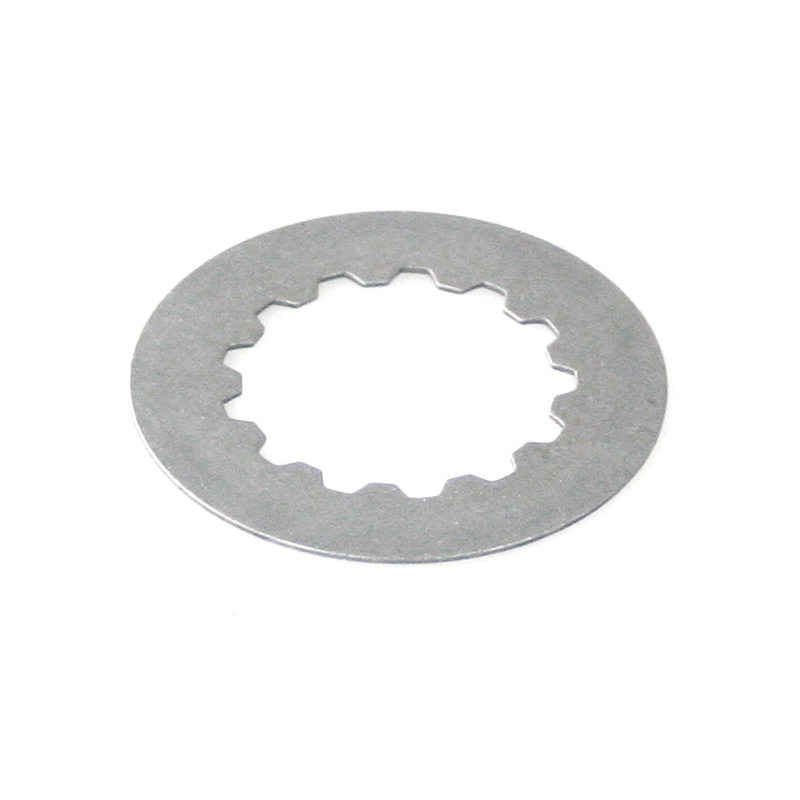

Securing plate, sprocket, 30x40x0.7 mm, single use, for BMW inline-four models with chain drive
